The LGS552P is a 52-Port Gigabit PoE+ Managed Switch featuring Layer 2/3 routing, 375W PoE budget, 2x 10G SFP+ uplink ports, 2x Gigabit SFP/RJ45 combo ports, Advanced QoS, and comprehensive network security.
Integrated PoE+ 375W | Layer 2 Switching + Layer 3 Static Routing | 2x 10G SFP+ Uplink Ports | 2x Gigabit SFP/RJ45 Combo Ports | IPv6 Support | Advanced QoS | Advanced Security | EEE 802.3az
Specifications:
Brand: Linksys | Model: LGS552P | Total Ports: 52 | Copper Ports (RJ45): g01–g50 | Combo Ports (RJ45+SFP): 2 (g49, g50) | 10G SFP+ Ports: XG1, XG2 | PoE+ Ports: 48 | PoE Budget: 375W | Memory: 128MB
Performance:
Switching Capacity: 140 Gbps | Forwarding Rate: 104.16 Mpps | MAC Table: 16K | HOL Blocking Prevention: Yes
Power:
Input: 100–240V, 50-60Hz, 8.4A max | Consumption: 110V: 66.63W | 220V: 66.62W | Fans: Three, 8,200 RPM
VLAN:
Port-based, IEEE 802.1Q tag-based | Auto Voice VLAN: Yes
QoS:
Scheduling: Priority Queuing, WRR | CoS: Port-based, 802.1p, IPv4/v6 DSCP | Priority Levels: 4 hardware queues
Security:
802.1X RADIUS | DHCP Snooping | DHCP Relay | ARP Inspection | IP Source Guard | IP-MAC-Port Binding | Management Access Control | Port Security | STP BPDU Guard | STP Root Guard
Access Control:
Up to 512 rules | Allow, Deny, or Rate Limit | MAC ACL and IP ACL | Layer 1–4 protocol fields
Spanning Tree:
IEEE 802.1d STP | IEEE 802.1w RSTP
Link Aggregation:
IEEE 802.3ad LACP | Up to 4 groups, 8 ports per group
IGMP Snooping:
v1/v2/v3 | 256 multicast groups
Storm Control:
Broadcast | Unknown-Unicast | Multicast
Management:
Interface: HTTP, HTTPS | Other: Telnet, DHCP Client, System Log, PING, Dual Images, SNTP, Config Backup via HTTP/TFTP
SNMP: v1, v2c | RMON: Embedded | Port Mirroring: Yes
Green Power Mode: EEE+ | Short Reach | Energy Detect
Physical:
Dimensions: 440 x 350 x 44.45 mm (17.32 x 13.78 x 1.75 in.) | Weight: 5.32 kg (11.73 lbs.)
Temperature:
Operating: 0–50°C (32–122°F) | Storage: -20–70°C | Humidity: 10–90% RH (non-condensing)
Network Standards:
IEEE 802.3 | 802.3u | 802.3ab | 802.3z | 802.3ae | 802.3x | 802.3ad | 802.3az | 802.1D | 802.1w | 802.1Q/p | 802.1X
The LGS552P is a 52-Port Gigabit PoE+ Managed Switch featuring Layer 2/3 routing, 375W PoE budget, 2x 10G SFP+ uplink ports, 2x Gigabit SFP/RJ45 combo ports, Advanced QoS, and comprehensive network security.
Integrated PoE+ 375W | Layer 2 Switching + Layer 3 Static Routing | 2x 10G SFP+ Uplink Ports | 2x Gigabit SFP/RJ45 Combo Ports | IPv6 Support | Advanced QoS | Advanced Security | EEE 802.3az
Specifications:
Brand: Linksys | Model: LGS552P | Total Ports: 52 | Copper Ports (RJ45): g01–g50 | Combo Ports (RJ45+SFP): 2 (g49, g50) | 10G SFP+ Ports: XG1, XG2 | PoE+ Ports: 48 | PoE Budget: 375W | Memory: 128MB
Performance:
Switching Capacity: 140 Gbps | Forwarding Rate: 104.16 Mpps | MAC Table: 16K | HOL Blocking Prevention: Yes
Power:
Input: 100–240V, 50-60Hz, 8.4A max | Consumption: 110V: 66.63W | 220V: 66.62W | Fans: Three, 8,200 RPM
VLAN:
Port-based, IEEE 802.1Q tag-based | Auto Voice VLAN: Yes
QoS:
Scheduling: Priority Queuing, WRR | CoS: Port-based, 802.1p, IPv4/v6 DSCP | Priority Levels: 4 hardware queues
Security:
802.1X RADIUS | DHCP Snooping | DHCP Relay | ARP Inspection | IP Source Guard | IP-MAC-Port Binding | Management Access Control | Port Security | STP BPDU Guard | STP Root Guard
Access Control:
Up to 512 rules | Allow, Deny, or Rate Limit | MAC ACL and IP ACL | Layer 1–4 protocol fields
Spanning Tree:
IEEE 802.1d STP | IEEE 802.1w RSTP
Link Aggregation:
IEEE 802.3ad LACP | Up to 4 groups, 8 ports per group
IGMP Snooping:
v1/v2/v3 | 256 multicast groups
Storm Control:
Broadcast | Unknown-Unicast | Multicast
Management:
Interface: HTTP, HTTPS | Other: Telnet, DHCP Client, System Log, PING, Dual Images, SNTP, Config Backup via HTTP/TFTP
SNMP: v1, v2c | RMON: Embedded | Port Mirroring: Yes
Green Power Mode: EEE+ | Short Reach | Energy Detect
Physical:
Dimensions: 440 x 350 x 44.45 mm (17.32 x 13.78 x 1.75 in.) | Weight: 5.32 kg (11.73 lbs.)
Temperature:
Operating: 0–50°C (32–122°F) | Storage: -20–70°C | Humidity: 10–90% RH (non-condensing)
Network Standards:
IEEE 802.3 | 802.3u | 802.3ab | 802.3z | 802.3ae | 802.3x | 802.3ad | 802.3az | 802.1D | 802.1w | 802.1Q/p | 802.1X

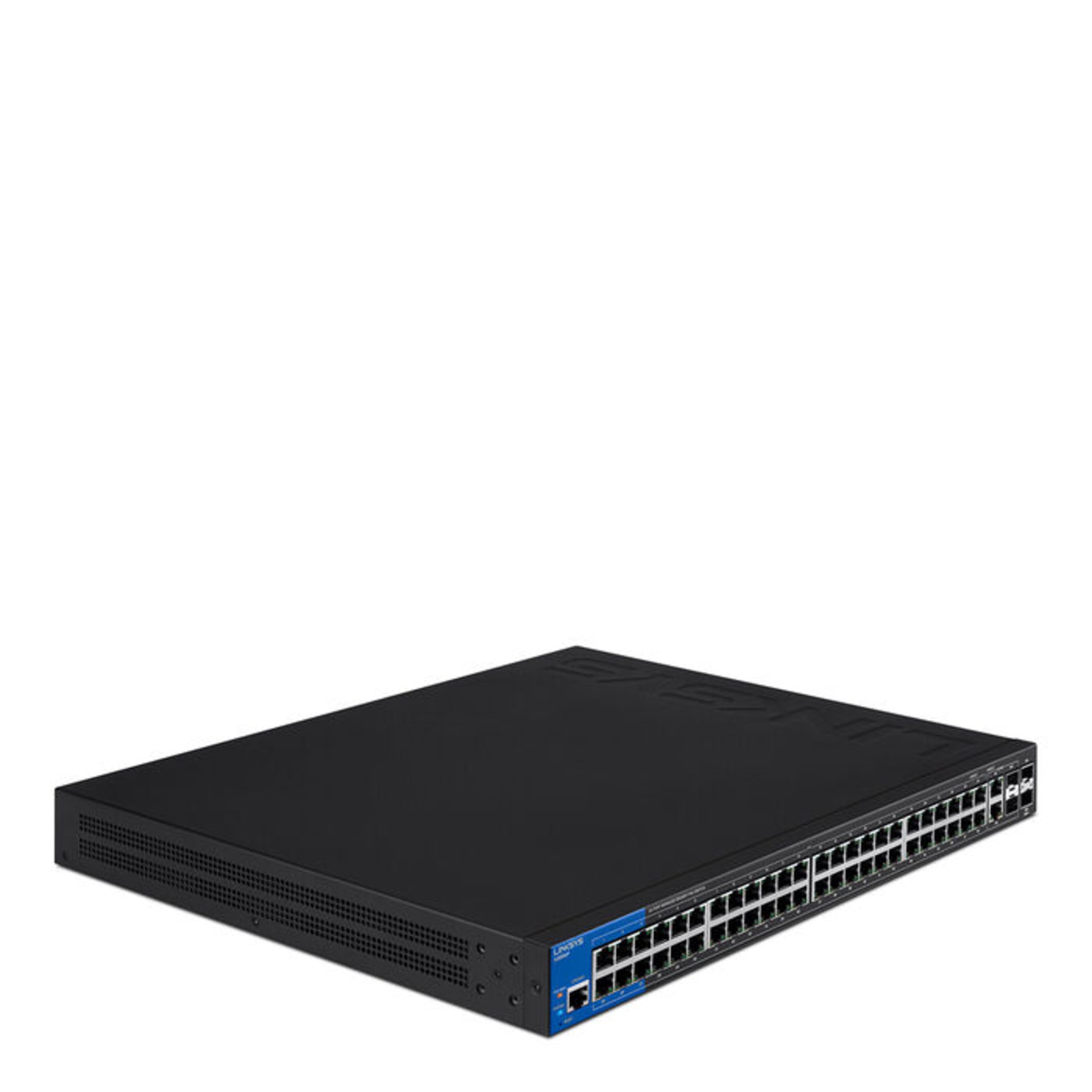

Image 1 of 3

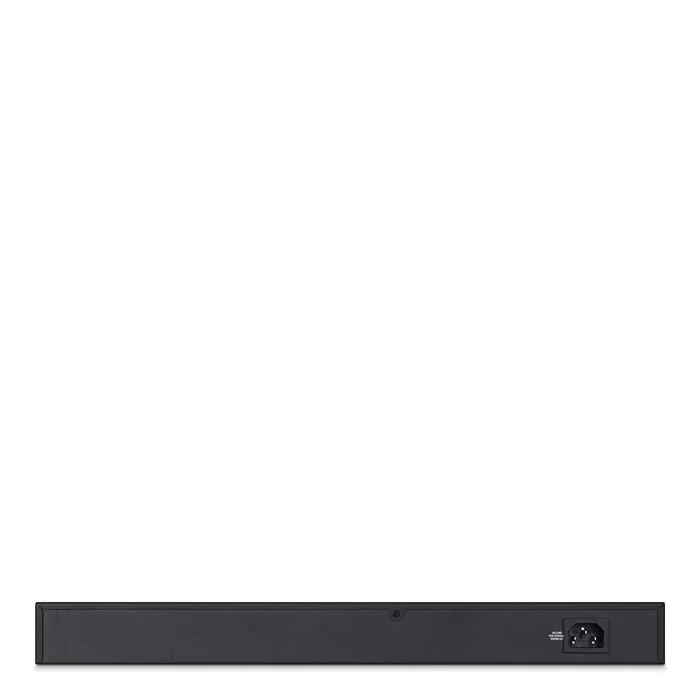

Image 2 of 3

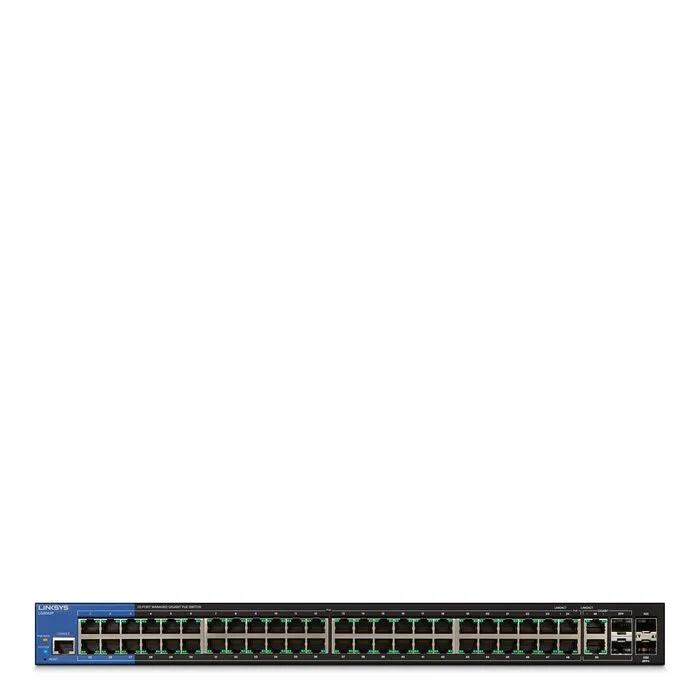

Image 3 of 3
