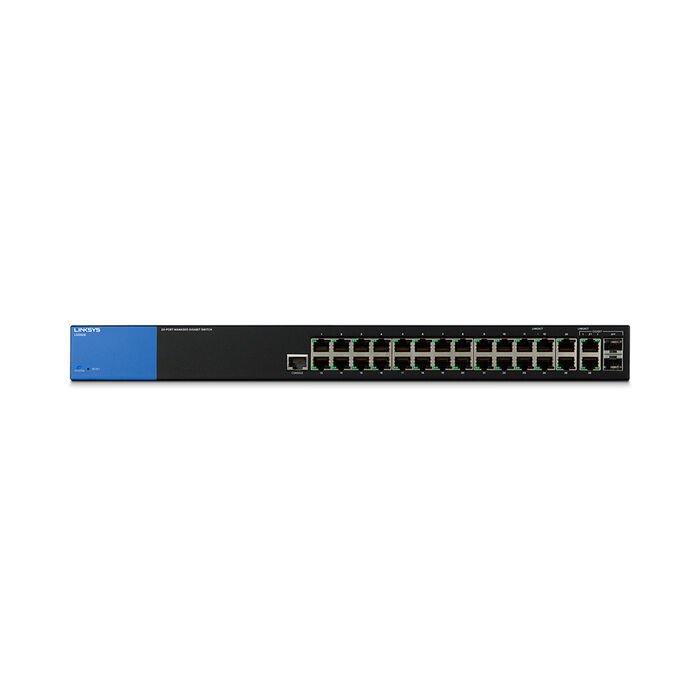

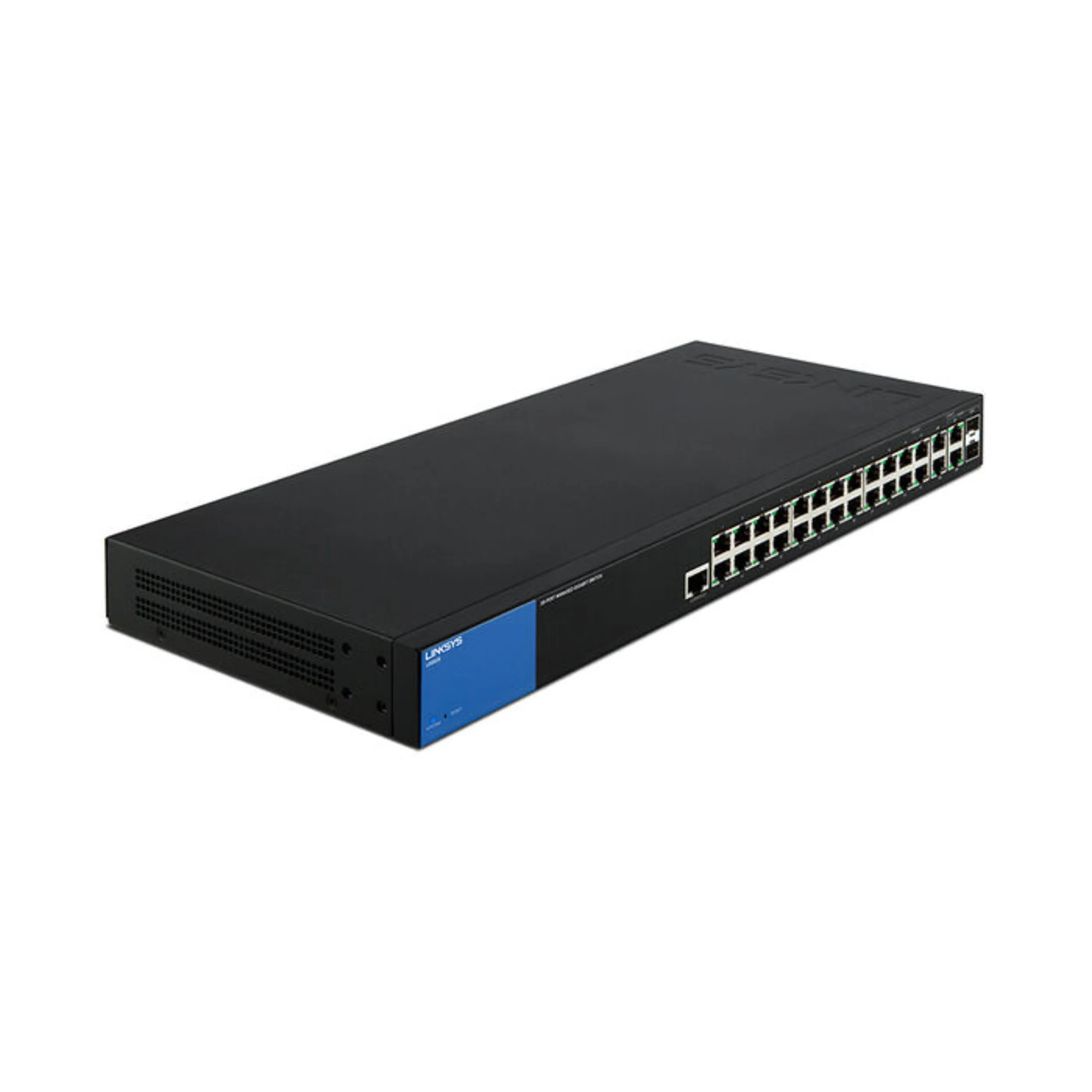

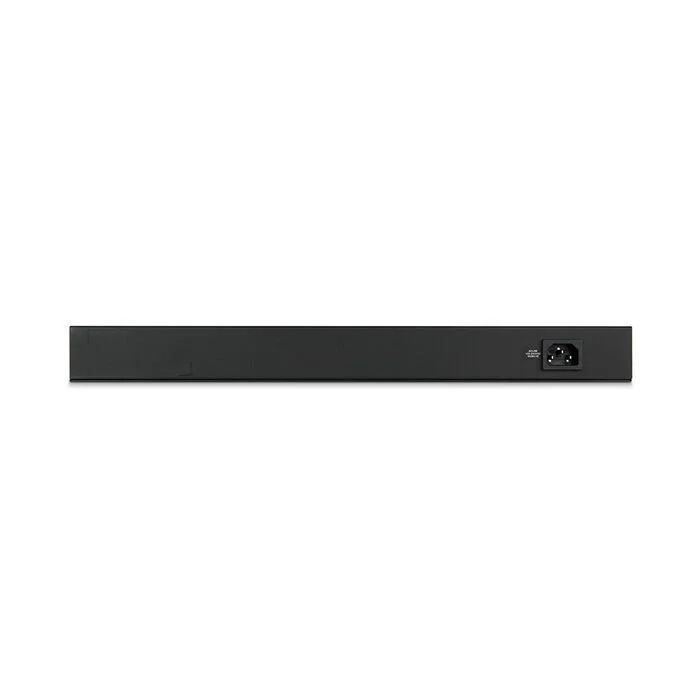

LGS528

The 28-Port Smart Gigabit Switch delivers enhanced security, advanced traffic management, and Layer 3 static routing with IPv6 Support, QoS, Spanning Tree Protocol, and Storm Control.

Layer 3 Static Routing | 2x SFP Combo Ports | IPv6 Support | Advanced QoS | Advanced Security | EEE 802.3az | Jumbo Frame 9K

Specifications:

Brand: Linksys | Model: LGS528 | Total Ports: 28GE | Copper Ports (RJ45): g01–g26 | Combo Ports (RJ45+SFP): 2 (g27, g28) | Memory: 128MB

Performance:

Switching Capacity: 56 Gbps | Forwarding Rate: 41.67 Mpps | MAC Table: 16K | HOL Blocking Prevention: Yes

Power:

Input: 100–240V, 50-60Hz, 0.7A max | Consumption: 110V: 19.4W | 220V: 19.71W

VLAN:

Port-based, IEEE 802.1Q tag-based | Auto Voice VLAN: Yes

QoS:

Scheduling: Priority Queuing, WRR | CoS: Port-based, 802.1p, IPv4/v6 DSCP | Priority Levels: 4 hardware queues

Security:

802.1X RADIUS | DHCP Snooping | DHCP Relay | ARP Inspection | IP Source Guard | IP-MAC-Port Binding | Management Access Control | Port Security | STP BPDU Guard | STP Root Guard

Access Control:

Up to 512 rules | Allow, Deny, or Rate Limit | MAC ACL and IP ACL | Layer 1–4 protocol fields

Spanning Tree:

IEEE 802.1d STP | IEEE 802.1w RSTP

Link Aggregation:

IEEE 802.3ad LACP | Up to 4 groups, 8 ports per group

IGMP Snooping:

v1/v2/v3 | 256 multicast groups

Storm Control:

Broadcast | Unknown-Unicast | Multicast

Management:

Interface: HTTP, HTTPS | Other: Telnet, DHCP Client, System Log, PING, Dual Images, SNTP, Config Backup via HTTP/TFTP

SNMP: v1, v2c | RMON: Embedded | Port Mirroring: Yes

Green Power Mode: EEE+ | Short Reach | Energy Detect

Physical:

Dimensions: 440 x 200 x 44.45 mm (17.32 x 7.87 x 1.75 in.) | Weight: 2.43 kg (5.36 lbs.)

Temperature:

Operating: 0–50°C (32–122°F) | Storage: -20–70°C | Humidity: 10–90% RH (non-condensing)

Network Standards:

IEEE 802.1D | 802.1Q/p | 802.1w | 802.1X | 802.3 | 802.3ab | 802.3ad | 802.3ae | 802.3az | 802.3u | 802.3x | 802.3z
