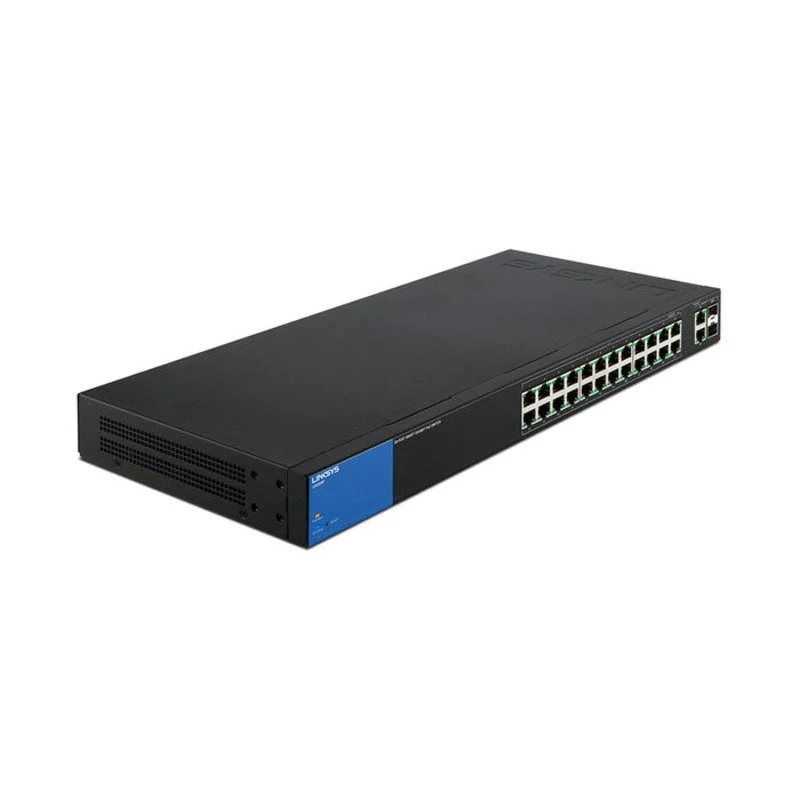

The 26-Port Smart PoE+ Switch, featuring Power over Ethernet Plus, IPv6 Support, QoS, and DHCP snooping for a fast, secure network. Designed for business-class management, security, speed, and quality of service.
Key Features:
Integrated Power Over Ethernet Plus | Proven Performance and Reliability | Easy Configuration and Management | Advanced Network Security | IPv6 Support | Enhanced QoS | Enhanced Security | Meets EEE 802.3az Standard | Jumbo Frame 9K (FE, GE)
Ports & Interfaces:
Total System Ports: 26GE
Copper Ports (RJ45): g01–g24
Combo Ports (RJ45 + SFP): 2 (g25, g26)
PoE+ Ports: 24
PoE+ Power Budget: 192W
Performance:
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
MAC Address Table: 8K
Memory: 128 MB
HOL Blocking Prevention: Yes
Power:
Input: 100–240V, 50-60Hz, 3.5A max
Power (without PoE+): 110V: 28.58W | 220V: 26.67W
Fans: Two, 8,200 RPM
VLAN:
Supported VLANs: 128 active (4,096 range)
Types: Port-based, 802.1q tag-based, Management, Guest, Dynamic (RADIUS + 802.1x)
Auto Voice VLAN: Yes (OUI-based)
QoS:
Scheduling: Priority Queuing, Weighted Round Robin (WRR)
Class of Service: Port-based, 802.1p, IPv4/v6 DSCP-based
Priority Levels: 4 hardware queues
Security:
802.1x RADIUS Authentication | DHCP Snooping | IP-MAC Binding | Management Access Control | Port Security (Dynamic Lock & Locked MAC)
Spanning Tree:
IEEE 802.1d STP | IEEE 802.1w RSTP
Link Aggregation:
IEEE 802.3ad LACP | Up to 4 groups, 8 ports per group
IGMP Snooping:
v1/v2/v3 | 256 multicast groups | Fast client joins/leaves
Storm Control:
Broadcast | Flooding | Multicast
SNMP: v1, v2c
RMON: Embedded agent for traffic monitoring and analysis
Management:
Interface: HTTP, HTTPS
Other: Telnet (Menu CLI), DHCP Client, System Log, PING, Dual Images, SNTP, Config Backup via HTTP/TFTP
Firmware Upgrade: TFTP | HTTP/HTTPS
Port Mirroring: Multiple ports to single port
Green Power Mode: EEE+ | Short Reach | Energy Detect
LEDs:
System: Blue | Link/Act/PoE: Green/Green
Network Standards:
IEEE 802.1d | 802.1q/p | 802.1X | 802.3 | 802.3ab | 802.3ad | 802.3af | 802.3at | 802.3az | 802.3u | 802.3x | 802.3z
Physical:
Dimensions: 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight: 3.096 kg (6.81 lbs.)
Temperature:
Operating: 0 to 50°C (32 to 122°F)
Storage: -40 to 70°C (-40 to 158°F)
Storage Humidity: 10 to 90% RH (non-condensing)
