The 5-Port Gigabit Switch accelerates productivity to Gigabit speeds, with QoS and plug-and-play configuration for ease of use. Designed for small business environments.
Gigabit Performance: Minimize transfer times and stream high-bandwidth files without interference.
Plug-And-Play Convenience: Instantly extend any network with quick and easy installation.
Power-Saving Features: Auto power-down disables unused ports; smart power ideal for short cable runs.
Key Features:
Wired Speed up to 1000 Mbps | 5 Gigabit Auto-Sensing Ports | Easy Plug & Play | QoS | EEE 802.3az Standard | Fanless Design | 5-Year Warranty
Ports & Interfaces:
Ports: 5 Gigabit Ethernet (10/100/1000)
Mounting: Wall
Performance:
Bandwidth: 10 Gbps (non-blocking)
Forwarding Rate: 0.01488 Mpps (10M) | 0.1488 Mpps (100M) | 1.488 Mpps (1000M)
MAC Address Table: 2,000 entries
Power:
Input: 110–240V AC, 50/60Hz | 5V DC, 1.0A | 12V 0.5A
Consumption: 0.73W / 2.22W
Power Saving: Cable Detection, Sleep Mode
Physical:
Dimensions: 120 x 88 x 26 mm
Weight: 0.252 kg
Fans: None
Temperature:
Operating: 0–50°C
Storage: -40–70°C
Operating Humidity: 10–90% (non-condensing)
Storage Humidity: 10–90% (non-condensing)
Network Standards:
IEEE 802.3 | 802.3ab | 802.3az | 802.3u | 802.3x
Regulatory: FCC Class B, CE
System Requirements: Connected devices need Ethernet connectivity and Ethernet cables.
The 5-Port Gigabit Switch accelerates productivity to Gigabit speeds, with QoS and plug-and-play configuration for ease of use. Designed for small business environments.
Gigabit Performance: Minimize transfer times and stream high-bandwidth files without interference.
Plug-And-Play Convenience: Instantly extend any network with quick and easy installation.
Power-Saving Features: Auto power-down disables unused ports; smart power ideal for short cable runs.
Key Features:
Wired Speed up to 1000 Mbps | 5 Gigabit Auto-Sensing Ports | Easy Plug & Play | QoS | EEE 802.3az Standard | Fanless Design | 5-Year Warranty
Ports & Interfaces:
Ports: 5 Gigabit Ethernet (10/100/1000)
Mounting: Wall
Performance:
Bandwidth: 10 Gbps (non-blocking)
Forwarding Rate: 0.01488 Mpps (10M) | 0.1488 Mpps (100M) | 1.488 Mpps (1000M)
MAC Address Table: 2,000 entries
Power:
Input: 110–240V AC, 50/60Hz | 5V DC, 1.0A | 12V 0.5A
Consumption: 0.73W / 2.22W
Power Saving: Cable Detection, Sleep Mode
Physical:
Dimensions: 120 x 88 x 26 mm
Weight: 0.252 kg
Fans: None
Temperature:
Operating: 0–50°C
Storage: -40–70°C
Operating Humidity: 10–90% (non-condensing)
Storage Humidity: 10–90% (non-condensing)
Network Standards:
IEEE 802.3 | 802.3ab | 802.3az | 802.3u | 802.3x
Regulatory: FCC Class B, CE
System Requirements: Connected devices need Ethernet connectivity and Ethernet cables.

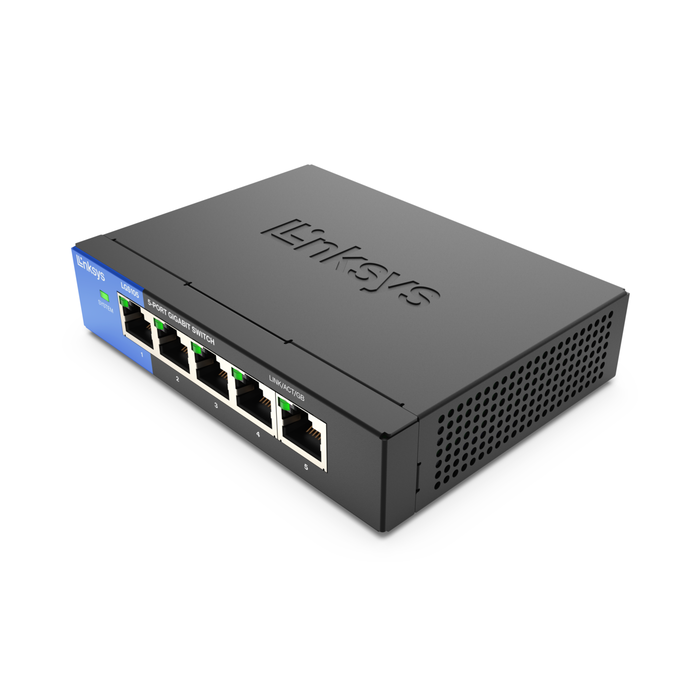

Image 1 of 5

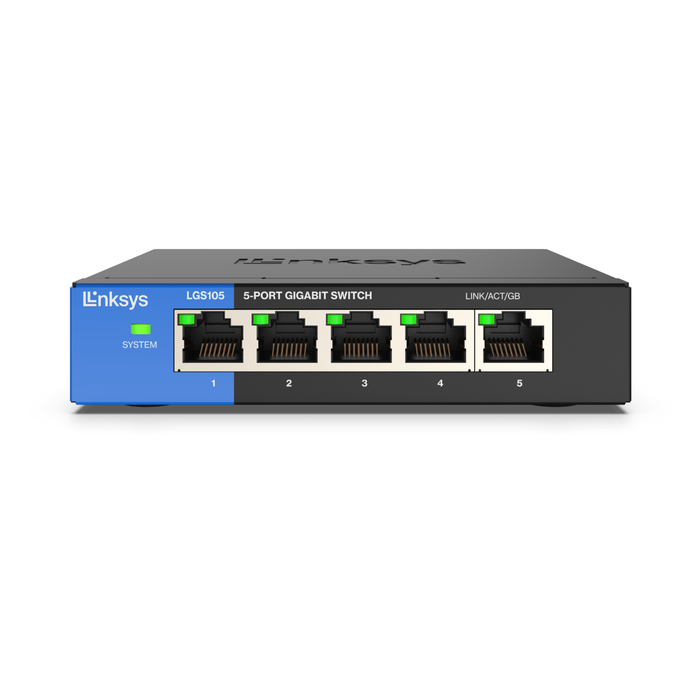

Image 2 of 5

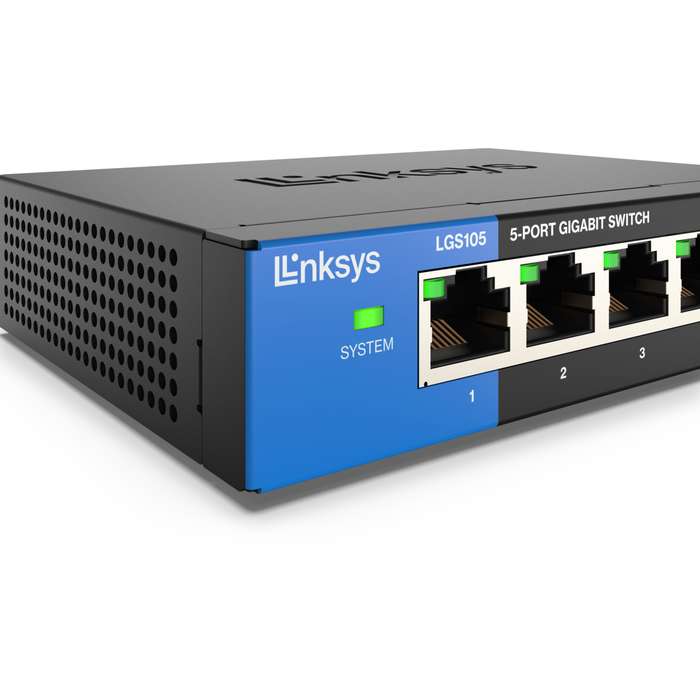

Image 3 of 5

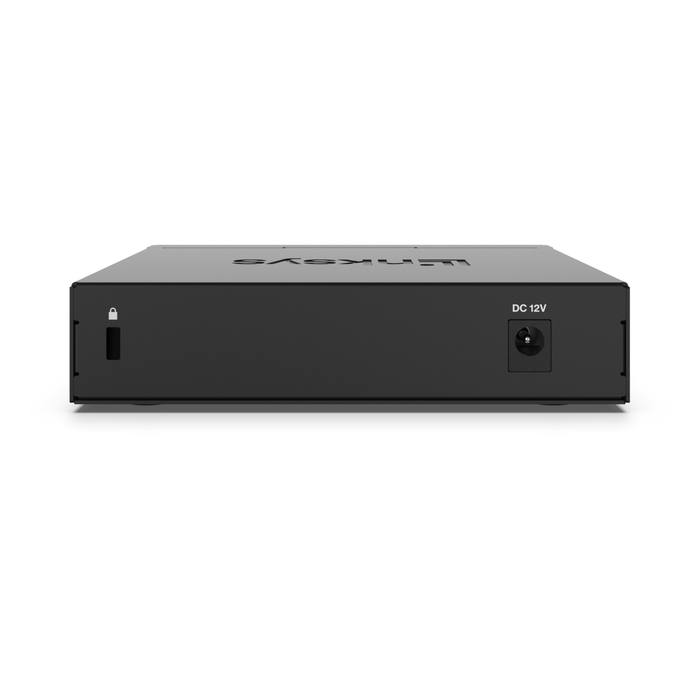

Image 4 of 5

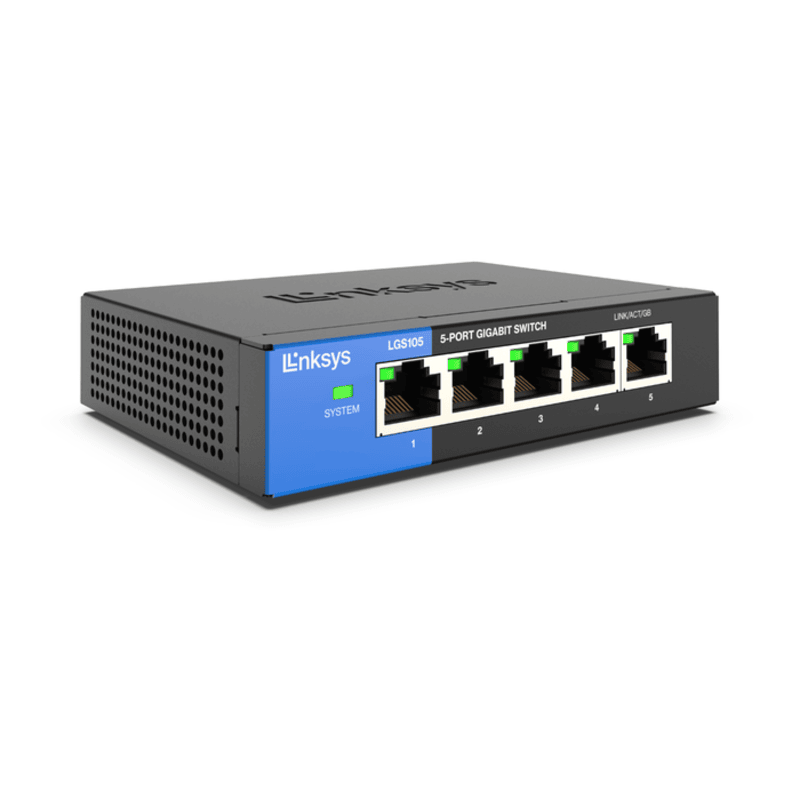

Image 5 of 5
