The LAPAC1750 is a Business AC1750 Dual-Band Access Point delivering next-generation 802.11ac Wi-Fi with PoE+, clustering, captive portal, and high-power antennas for small to medium-sized businesses.
Dual Band AC1750 | 802.11ac | PoE+ IEEE 802.3at | Clustering | Captive Portal | Band Steering | 16 SSIDs | Lifetime Warranty
Specifications:
Brand: Linksys | Model: LAPAC1750 | Wireless: 802.11a/b/g/n/ac | Ports: 1x Gigabit LAN (PoE+) + 1x 12V/1.5A Power | Mounting: Ceiling, Wall
Performance:
Max Speed: AC1750 Mbps | Antenna Gain: 1.7dBi @ 2.4G | 1.9dBi @ 5G | Antenna Type: Internal PCBA | RF Transmit Power: High Power PA | Max Power Consumption: 15W
Radio Channels:
2.4GHz: 2.412–2.462 GHz, 11 channels | 5GHz: 5.180–5.240 GHz, 4 channels | 5.745–5.825 GHz, 5 channels
Receive Sensitivity:
802.11a/g @ 54Mbps: -73dBm | 802.11b @ 11Mbps: -85dBm | 802.11n HT20 MCS7: -67dBm | 802.11n HT40 MCS7: -65dBm
Advanced Features:
Band Steering | Captive Portal | Clustering | Dual Image Support | IGMP/MLD Snooping | IPv6 Interface | Scheduler | WDS | Workgroup Bridge
Security:
802.1X Supplicant | Channel Isolation | MAC-Based Access Control | Multiple SSIDs (16) | RADIUS | Rogue AP Detection | SSID to VLAN Mapping | WPA/WPA2 Personal and Enterprise | Kensington Lock
QoS:
Bandwidth Management | WMM
Management:
Interface: HTTP, HTTPS, SNMP | Clustering | Event Notification: Local Log, Remote Syslog, Email Alert | Diagnostics: Log, Ping, Packet Capture
Physical:
Dimensions: 9.57 x 9.33 x 1.72 in. | Weight: 1.12 lbs.
Temperature:
Operating: 0–40°C (32–104°F) | Storage: -20–70°C | Humidity: 10–85% (non-condensing)
Network Standards:
IEEE 802.11a | 802.11b | 802.11g | 802.11n | 802.11ac | 802.3at PoE+ | WMM
Certifications: FCC, CE, IC
Warranty: Limited Lifetime Warranty
The LAPAC1750 is a Business AC1750 Dual-Band Access Point delivering next-generation 802.11ac Wi-Fi with PoE+, clustering, captive portal, and high-power antennas for small to medium-sized businesses.
Dual Band AC1750 | 802.11ac | PoE+ IEEE 802.3at | Clustering | Captive Portal | Band Steering | 16 SSIDs | Lifetime Warranty
Specifications:
Brand: Linksys | Model: LAPAC1750 | Wireless: 802.11a/b/g/n/ac | Ports: 1x Gigabit LAN (PoE+) + 1x 12V/1.5A Power | Mounting: Ceiling, Wall
Performance:
Max Speed: AC1750 Mbps | Antenna Gain: 1.7dBi @ 2.4G | 1.9dBi @ 5G | Antenna Type: Internal PCBA | RF Transmit Power: High Power PA | Max Power Consumption: 15W
Radio Channels:
2.4GHz: 2.412–2.462 GHz, 11 channels | 5GHz: 5.180–5.240 GHz, 4 channels | 5.745–5.825 GHz, 5 channels
Receive Sensitivity:
802.11a/g @ 54Mbps: -73dBm | 802.11b @ 11Mbps: -85dBm | 802.11n HT20 MCS7: -67dBm | 802.11n HT40 MCS7: -65dBm
Advanced Features:
Band Steering | Captive Portal | Clustering | Dual Image Support | IGMP/MLD Snooping | IPv6 Interface | Scheduler | WDS | Workgroup Bridge
Security:
802.1X Supplicant | Channel Isolation | MAC-Based Access Control | Multiple SSIDs (16) | RADIUS | Rogue AP Detection | SSID to VLAN Mapping | WPA/WPA2 Personal and Enterprise | Kensington Lock
QoS:
Bandwidth Management | WMM
Management:
Interface: HTTP, HTTPS, SNMP | Clustering | Event Notification: Local Log, Remote Syslog, Email Alert | Diagnostics: Log, Ping, Packet Capture
Physical:
Dimensions: 9.57 x 9.33 x 1.72 in. | Weight: 1.12 lbs.
Temperature:
Operating: 0–40°C (32–104°F) | Storage: -20–70°C | Humidity: 10–85% (non-condensing)
Network Standards:
IEEE 802.11a | 802.11b | 802.11g | 802.11n | 802.11ac | 802.3at PoE+ | WMM
Certifications: FCC, CE, IC
Warranty: Limited Lifetime Warranty

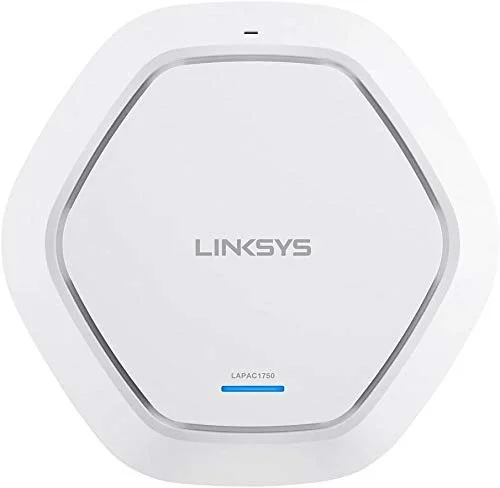

Image 1 of 4

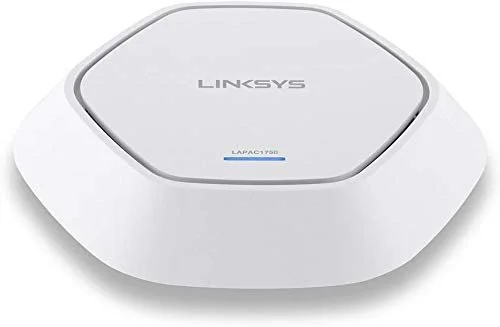

Image 2 of 4

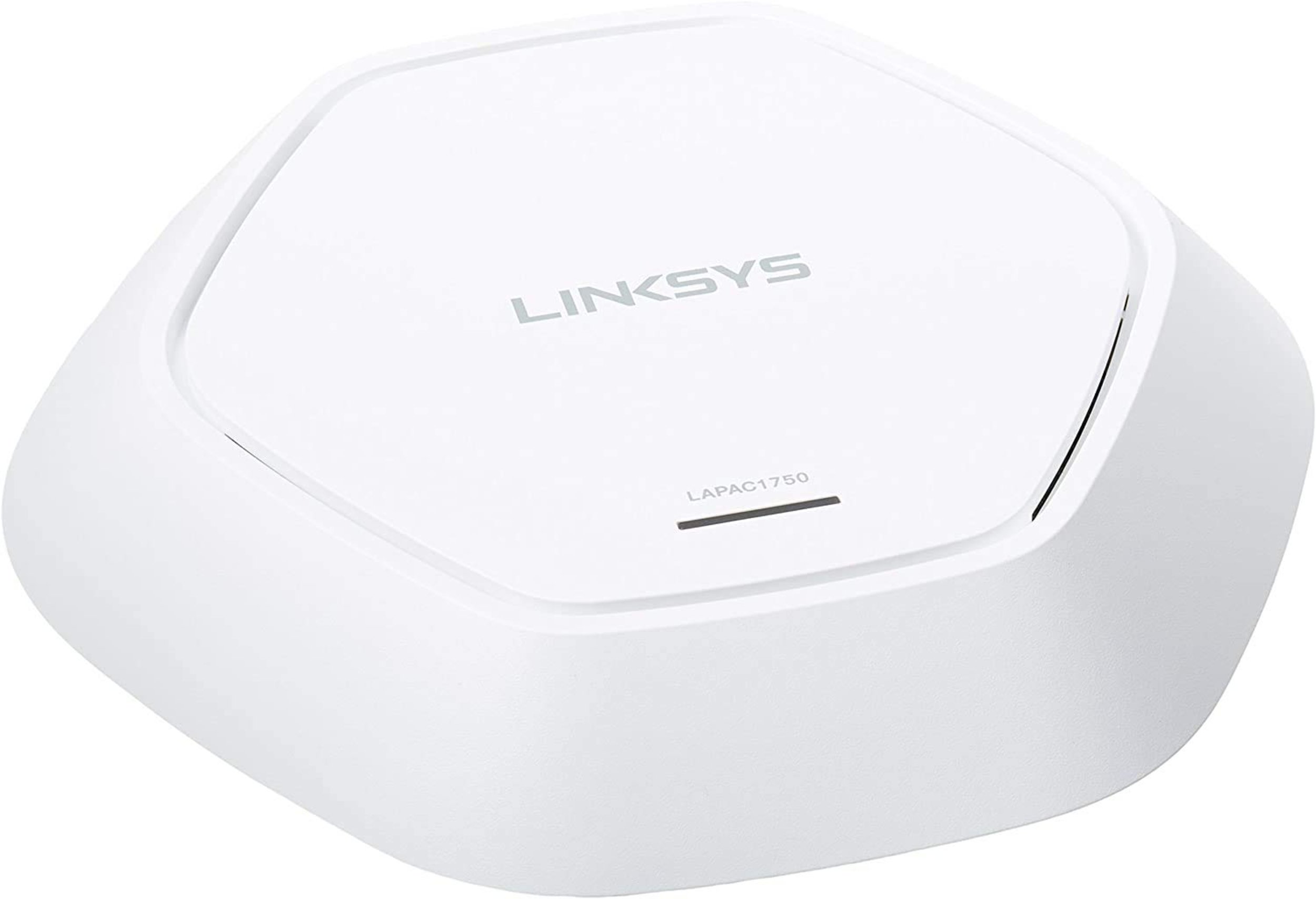

Image 3 of 4

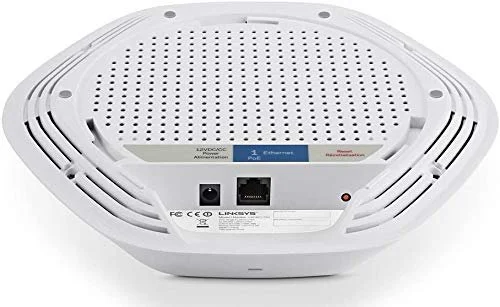

Image 4 of 4
